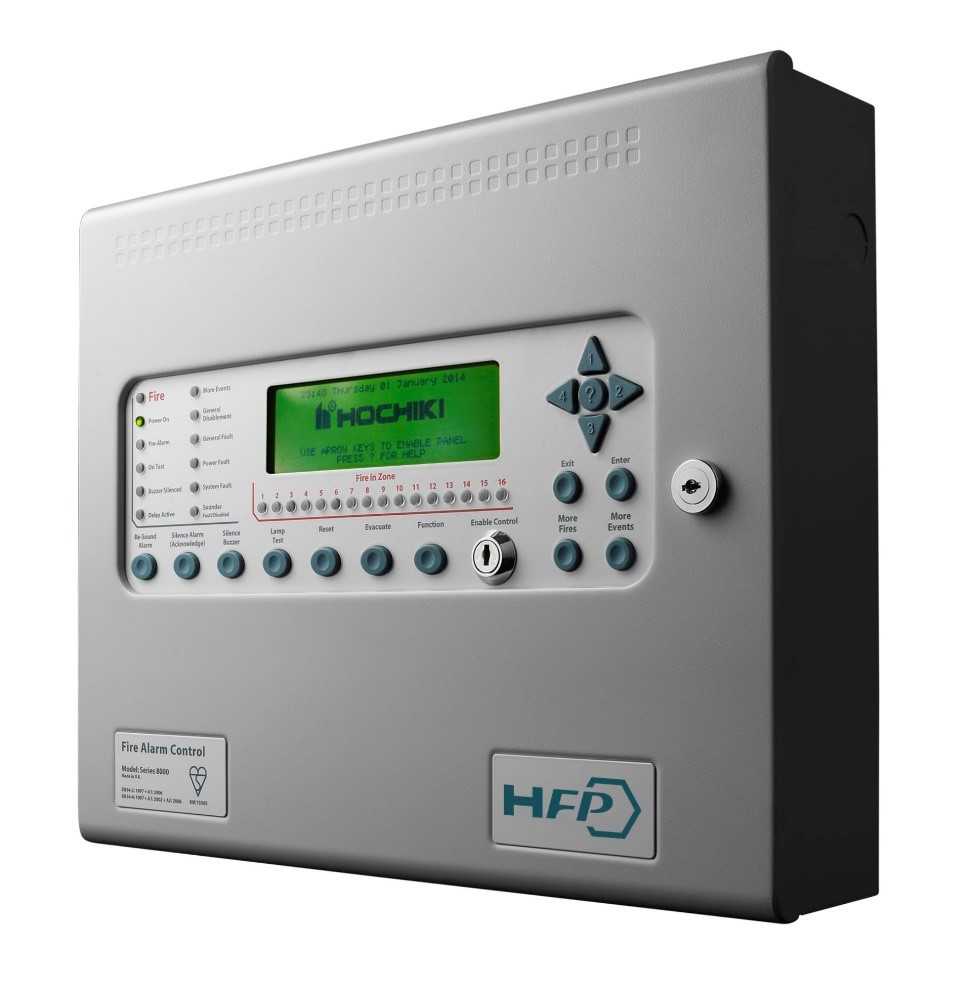

HFP AP-AS Analogue Addressable 1-2 Loop Control Panels
Product Overview
The HFP AP-AS is a powerful and versatile Single or two Loop Analogue Addressable Fire Control Panel. HFP AP-AS supports Hochiki ESP loop drivers, which are all capable of providing up to 400 milliamps of loop current for the most demanding applications.
An integral 3 Amp power supply and temperature compensated battery charger provides ample power for the two, 1 Amp rated standard sounder outputs, loop powered sounders and other devices. HFP AP-AS is also available as a HFP AP-ASL version offering a very cost effective solution for smaller standalone installations requiring only one detection loop.
The HFP AP-ASL version does not support the following: Second loop, Printer output, Networking and connection of I/O boards or the HFP AP-CRL repeater.
Features
| Construction | 1.2mm mild sheet steel |
| IP Rating |
P30 |
| Finish | Epoxy powder coated |
| Colour – lid & box | BS 00 A 05 grey – fine texture |
| Colour – controls plate & labels | RAL 7047 light grey – satin |
| Weight | 6kg (standard panel) |
| Display | 8 lines of 40 characters graphic LCD |
| Mains voltage supply | 110 or 230V AC 50 or 60 Hz. (Specify when ordering, default is 230V) |
| Mains supply fuse | 110 or 230V AC 50 or 60 Hz. (Specify when ordering, default is 230V) |
| Power supply DC rating | 24V 3 Amps |
| Aux 24V supply | Fused at 500 milliamps |
| Maximum Battery size | 9Ah 12V (2 per panel) (non-networked) |
| Fault contact rating | 30V DC1 Amp |
| Fire contact rating | 30V DC1 Amp |
| Alarm contact rating | 30V DC1 Amp |
| Sounder output rating | Fused at 1 Amp each |
| Detection loop | 400 milliamp output |
| Dimensions (mm) | 385 x 310 x 90 |
